weight (kg) : 0.5
machinery test report : Not Available
Applicable Industries : CNC machining center
video outgoing-inspection : Provided
Condition : New
MOQ : 1 piece
warranty : 1 Year
Price : $16.90-19.90 / piece
Place of Origin : Guangdong, China
Machine Type : Punching Machine, Milling Machine, Grinding Machine, lathe machine, Drilling Machine
Core Components : Housing/Nut/Operating Rod:SUS303
Brand Name : OEM/ODM
Supply Voltage | DC5~24V | ||
Stroke | 1.5mm | ||
Operating force | 0.4N | ||
Work point position [PT] | 0.2~0.5mm | ||
Differential [MD] | 0.1mm or less | ||
Repeat positioning accuracy | ± 0.001mm | ||
Output method | ZTSM8: | ||
NPN Normally open (ON for proximity) | |||
ZTSM8(B): | |||
NPN normally closed (OFF at proximity) | |||
Output current | ZTSM8 | 15mA MAX | |
ZTSM8(B) | |||
ZTSM8-LED | 12mA MAX | ||
ZTSM8(B)-LED | |||
Current consumption | ZTSM8 | 12mA MAX | |
ZTSM8(B) | |||
ZTSM8-LED | 15mA MAX | ||
ZTSM8(B)-LED | |||
Operating Frequency | Below 60 times/min | ||
Withstanding Voltage | AC1000V | ||
(1 minute, between the whole charging part and the shell) | |||
Insulation resistance | DC250V | ||
(20MΩ or more, between the whole charging part and the shell) | |||
Operating Ambient Temperature | -20°C~+85°C (no condensation) | ||
Working environment humidity | 20~95%RH | ||
Wire specification | Φ2.8x1m | ||
ZTSM8: Gray | |||
ZTSM8(B): Black color | |||
Material | Housing/Nut/Operating Rod:SUS303 | ||
Installation | M8 nut, tightening torque 5N-m or less | ||
Mounting hole processing size | Φ8+0.5 / 0 | ||
Indicator light | ZTSM8 | No | |
ZTSM8(B) | |||
ZTSM8-LED | Approx. 100mm from sensor body | ||
ZTSM8(B)-LED | |||
Protection Class | IP67 | ||







|
|

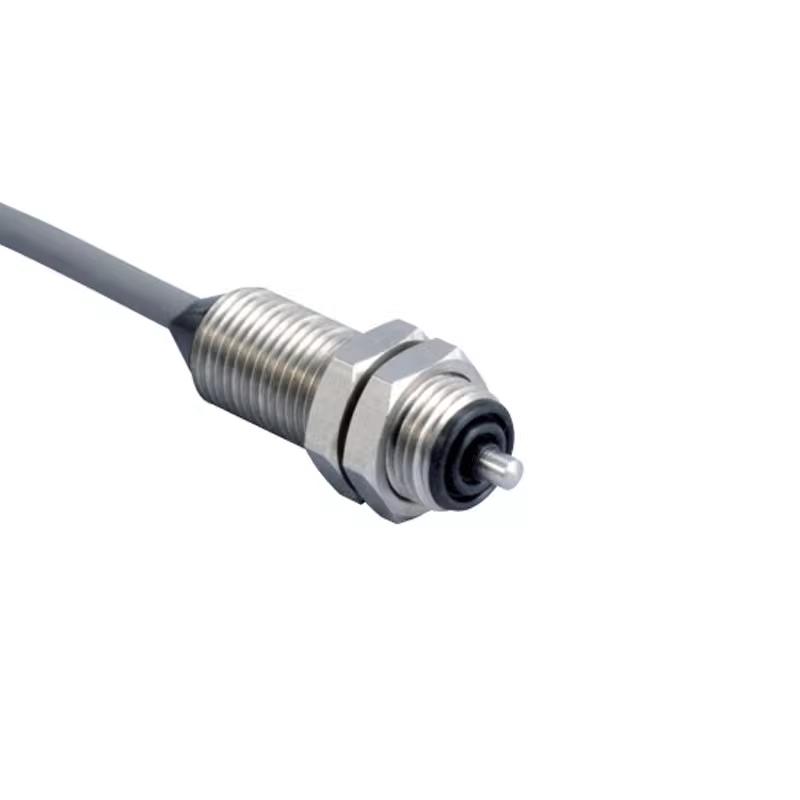

Makinopc High Quality ZTSM8 Contact Sensor CNC Machine Tool Measuring Probe Miniature Inductive Switch Images |
