machinery test report : Not Available
Rated voltage : DC24V/20MA
weight (kg) : 0.585
Brand Name : Makinopc
Material : Stainless Steel
Place of Origin : Guangdong, China
Service time : 3 million times
Water proof and oil proof : IP67*100%, oil-proof sealing performance
Products name : Automatic Tool Setter MP21
video outgoing-inspection : Provided
Model 1 : normally open
Price : $49-69 / piece
Electric shock life : 5mm
Model 2 : normally close
warranty : 1 Year
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine
Contact force : 2.5N
Repeatability : 0.001mm
MOQ : 1 piece
Product Name | Automatic Tool Setter |
Model | MP21-10, MP21-16 |
Diameter of cutting surface | Ф 10mm, Ф 16mm |
Output Mode | NC normally closed type/NO normally open type |
Pre-stroke | 0 |
Stroke | 5 |
Repeatability | 0.001mm (Condition: Operating speed 50-200mm/min) |
Contact life | 3 million times |
Protection structure | IP67*100% waterproof and oilproof sealing performance |
Contact force | 1.5N (Mounting condition must be vertical) |
Contact part material | Tungsten steel |
Surface treatment | Grinding 4S mirror |
Contact Nominal Value | DC24V-20mA(MAX)(Recommended value 10mA) Resistance Load |
Cable | 2m oil-resistant 4-core 4.8 tensile strength 30N, minimum bending radius R7 |
Protection Tube | 1m minimum bending radius R25 |
Mounting hole distance | 10-12mm |
Net Weight | 193g (default MP21-10 weight) |
Gross Weight | 277g (default weight of MP21-10) |
Over-travel alarm signal | Output Mode: NC Normally Closed (Distance to detection signal approx. 2.5mm) |
Contact Voltage: DC24V-20mA(MAX)(Recommended value 10mA) Resistance Load |










|
|

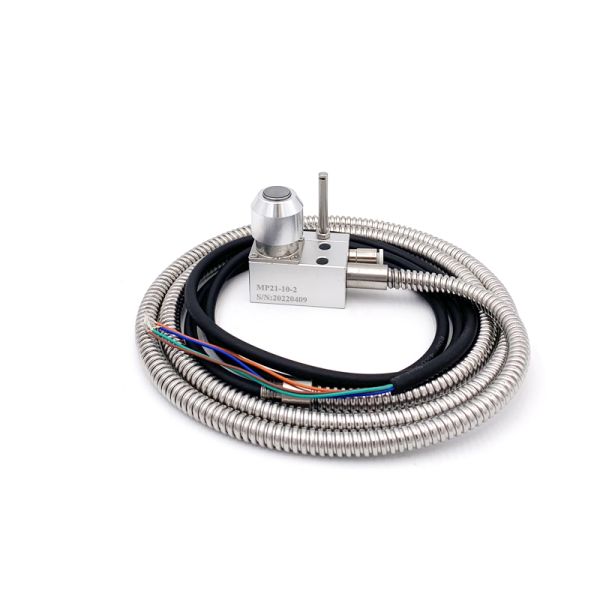

MP21 Automatic Tool Setter 10-16mm Diameter Broken Tool Detection with 0.001mm Precision for CNC Engraving Milling Machine Use Images |
