MT25 Plus 0.001mm CNC Wired Probe Automatic XYZ Axis Measuring Sensor Stylus for CNC Lathe Milling Machine Centers

Name: MT25 Plus 0001mm CNC Wired Probe Automatic XYZ Axis Measuring Sensor Stylus for CNC Lathe Milling Machine Centers
Brand: Makinopc
Price: 278 USD

China MT25 Plus 0.001mm CNC Wired Probe Automatic XYZ Axis Measuring Sensor Stylus for CNC Lathe Milling Machine Centers wholesale

Place of Origin : Guangdong, China

Trigger life : ≥10 million times

video outgoing-inspection : Provided

warranty : 1 Year

Machine Type : Milling Machine, lathe machine, CNC waterjet cutting machine, Engraving Machine

Warranty : 12 months

Brand Name : Makinopc

Stylus sensing direction : ±X, ±Y, Z

Product Name : CNC Machine Wired Probe

Measuring speed : <5m/min

Signal transmission method : Cable

Repeat Positioning Accuracy : 0.001mm (conditioned operating speed 30-120mm/min)

MOQ : 1PC

MOQ : 1 piece

weight (kg) : 1

Departure protection stroke : 5mm

machinery test report : Not Available

Application : For measuring workpiece on edm and cnc lathe machine

Price : $278-298 / piece

Contact Now

Products Description

Brief Introduction

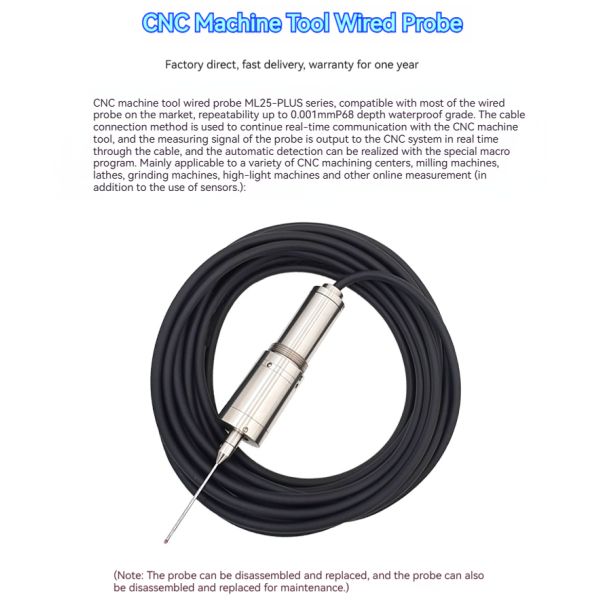

This probe can completely replace Renishaw, Mabus wired probe, mainly used for CNC machining centers, milling machines, grinding machines, precision engraving machines, such as online measurement, (another can be used as a sensor.) The cable connection allows real-time communication with the CNC machine tool. The measurement signal from the probe is output to the CNC system in real time via the cable, and can be used with a dedicated macro program to achieve automatic measurement.

Product Paramenters

Product Name	Wired Probe for CNC Machine Tools Measurement & Inspection
Product Model	MT25-Plus
Repeat Positioning Accuracy	0.001mm (conditioned operating speed 30-120mm/min)
Signal transmission method	Cable
Stylus sensing direction	X, ±Y, Z
Maximum stroke	5mm
Trigger life	10 million times
Contact strength	1N
Body material	304 stainless steel
Stylus material	Super hard alloy (configurable according to usage requirements)

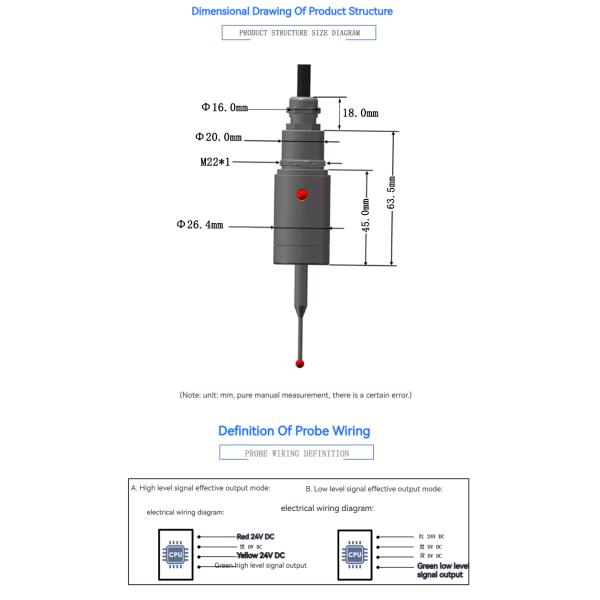

Side Head Length	81mm (excluding stylus length)
Cable Size	Standard 1m oil resistance (length can be customized)
Contact rating	DC24V
Protection Rating	IP68
Indicator Lamp	Without indicator
Net Weight	160g
Gross Weight	293g
Warranty	12 months

Details Images

MT25 Plus 0.001mm CNC Wired Probe Automatic XYZ Axis Measuring Sensor Stylus for CNC Lathe Milling Machine Centers

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.

Company Profile

Shenzhen Muye Precision Control Electromechanical Co., Ltd., established in 2014, is a service-oriented enterprise specializing in the R&D, design, and sales of CNC machine tool accessories. Our current product portfolio primarily includes: CNC machine tool probes, automatic tool setters, electronic handwheels, manual pulse generators, measuring styli, spindle encoders, band switches, sensors, and installation/commissioning solutions for automatic tool changers. Our factory is located in Songgang Town, Bao'an District, Shenzhen, covering an area exceeding 3,000 square meters. We employ 20 professional technicians, operate 15 testing instruments, and maintain two production lines, achieving a monthly production capacity of 100,000 units. Our products feature exclusive patented designs and proprietary brands, and have obtained multiple international quality certifications including CE, FCC, and RoHS. Our products are widely compatible with PLC control systems including Fanuc, , Mitsubishi, Fagor, Heidenhain, Baoyuan, New Generation, Hanac, GSK CNC (Guangzhou), Open Source CNC, KND, Norson, Delta, and more. They serve CNC machining centers, engraving machines, engraving/milling machines, drilling/reaming machines, EDM machines, milling machines, lathes, and other equipment. Guided by the business philosophy of “Customer First, Integrity-Based,” the company has established long-term partnerships with numerous enterprises. We warmly welcome professionals worldwide to visit and discuss business opportunities.

Our Advantages

1. We specialize in the field of CNC machine tool accessories and have more than ten years of industry experience. 2. We have our own brand called Makinopc and exclusive patent design and quality certification. 3. We provide you with friendly English user manual or operation video for free. 4. We have 24 hours technical support by email or phone. 5. Warranty: 1 year free warranty, 2-3 years warranty at cost, and always provide free technical support. 6. We have no MOQ limit and accept OEM/ODM bulk orders.

FAQ

Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2: How to choose the appropriate model or specifications? A:Based on your requirement and application, our professional engineers will offer you a detailed suggestions regarding models and specifications. Q3:Can I become your dealer? A:Of course, we need partners to create value together. Q4: Do you accept customized service? A:Yes, we can provide not only standard products, but also customized service and solutions. Q5: Do you have any MOQ (minimum order quality)limit? A: For standard product, usually 1pcs/item. For the OEM order, need to communicate product solutions. Q6.How long is the product shelf life? A: Our product watranty period is one year. Q7: How to proceed an order? A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a paying link.Online trading is safe and convenient.
